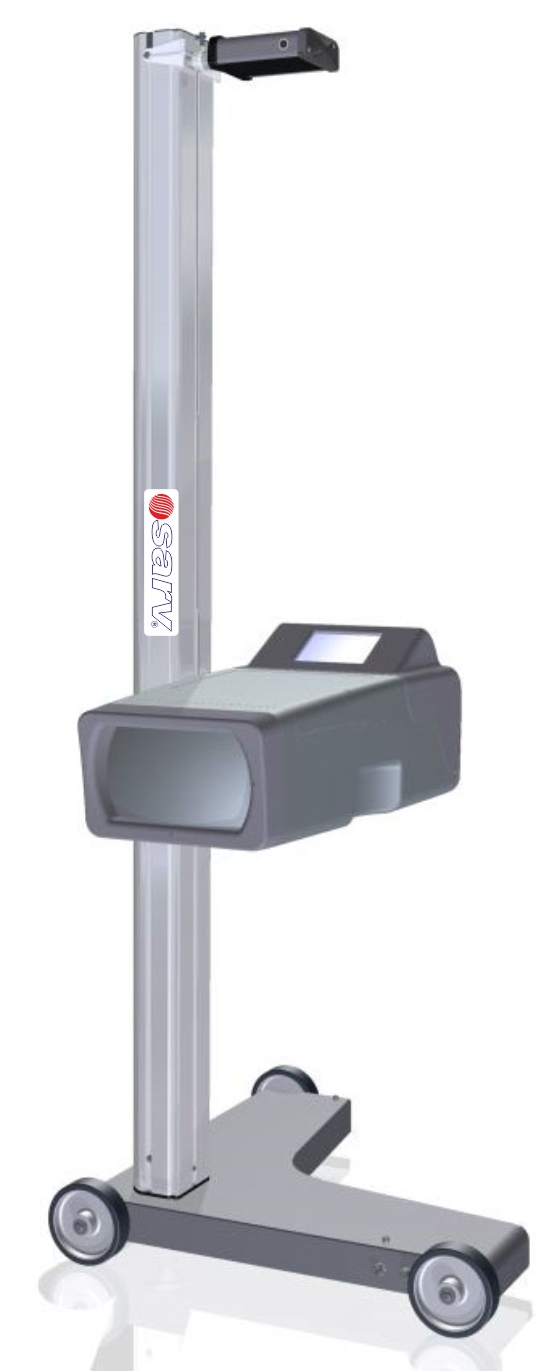

- The Headlight Aligner is an advanced camera-based beam setter system designed for precise headlamp alignment and inspection.
- It features a CMOS camera with high-resolution sensing, enabling accurate detection of beam patterns and intensity levels.
- The integrated TFT touchscreen display allows technicians to easily monitor and adjust headlight alignment in real-time.
- Designed to support both manual and guided alignment procedures, making it suitable for different workshop skill levels.
- The Headlight Aligner system ensures compliance with vehicle safety standards by accurately checking beam direction, intensity, and cutoff alignment.
- Built with a robust column and wheeled base, it allows easy movement and positioning within the workshop.
- Includes optical components such as mirror and fresnel lens, improving beam clarity and measurement accuracy.
- Supports additional modules like printer, Bluetooth, and Wi-Fi, enabling data recording and reporting.
- Designed for workshops that require fast, accurate, and repeatable headlight alignment results.

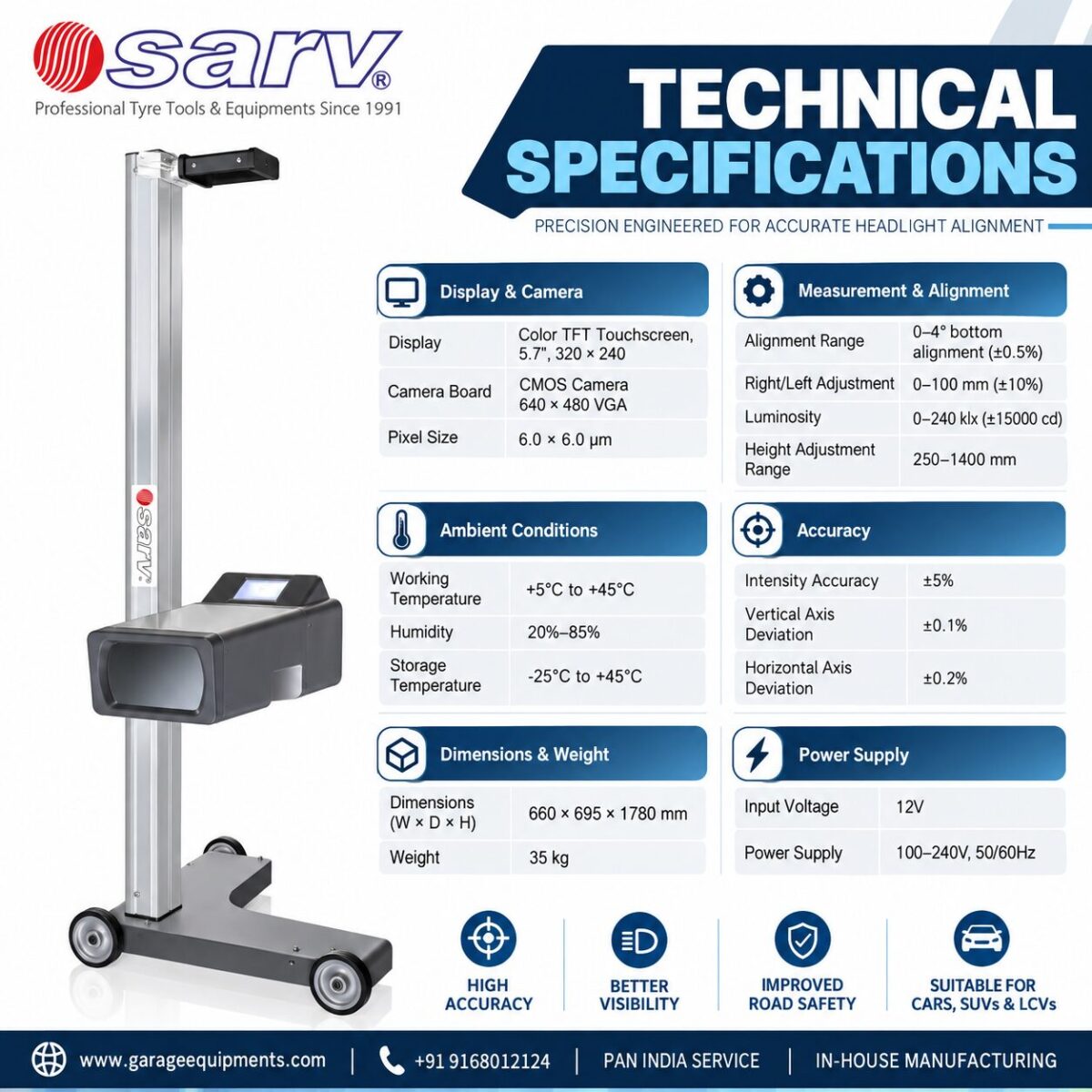

Technical Specifications
Display & Camera
Display: Color TFT Touchscreen, 5.7″, 320×240
Camera Board: CMOS Camera 640×480 VGA
Pixel Size: 6.0 × 6.0 µm
Ambient Conditions
Working Temperature: +5°C to +45°C
Humidity: 20%–85%
Storage Temperature: -25°C to +45°C
Dimensions & Weight
Dimensions (W × D × H): 660 × 695 × 1780 mm
Weight: 35 kg
Measurement & Alignment
Alignment Range: 0–4° bottom alignment (±0.5%)
Right/Left Adjustment: 0–100 mm (±10%)
Luminosity: 0–240 klx (±15000 cd)
Height Adjustment Range: 250–1400 mm
Input Voltage: 12V
Power Supply: 100–240V, 50/60Hz
Accuracy
Intensity Accuracy: ±5%
Vertical Axis Deviation: ±0.1%
Horizontal Axis Deviation: ±0.2%
Applications
Automotive service workshops
Vehicle inspection and testing centers
Dealership service stations
Headlamp alignment service bays
Fitness test lanes
Fleet maintenance facilities
Key Features
Camera-Based Measurement – CMOS camera captures precise beam patterns.
TFT Touchscreen Interface – 5.7” display for easy adjustments.
High-Precision Optics – Mirror and Fresnel lenses ensure accuracy.
Wide Measurement Range – Supports various angles, intensities, and heights.
Mobile Column Design – Wheeled base for easy positioning.
Data Recording & Connectivity – Optional printer, Bluetooth, and Wi-Fi support.
Environmental Adaptability – Reliable across temperature and humidity variations.
High Accuracy Calibration – Ensures vertical and horizontal alignment compliance.
