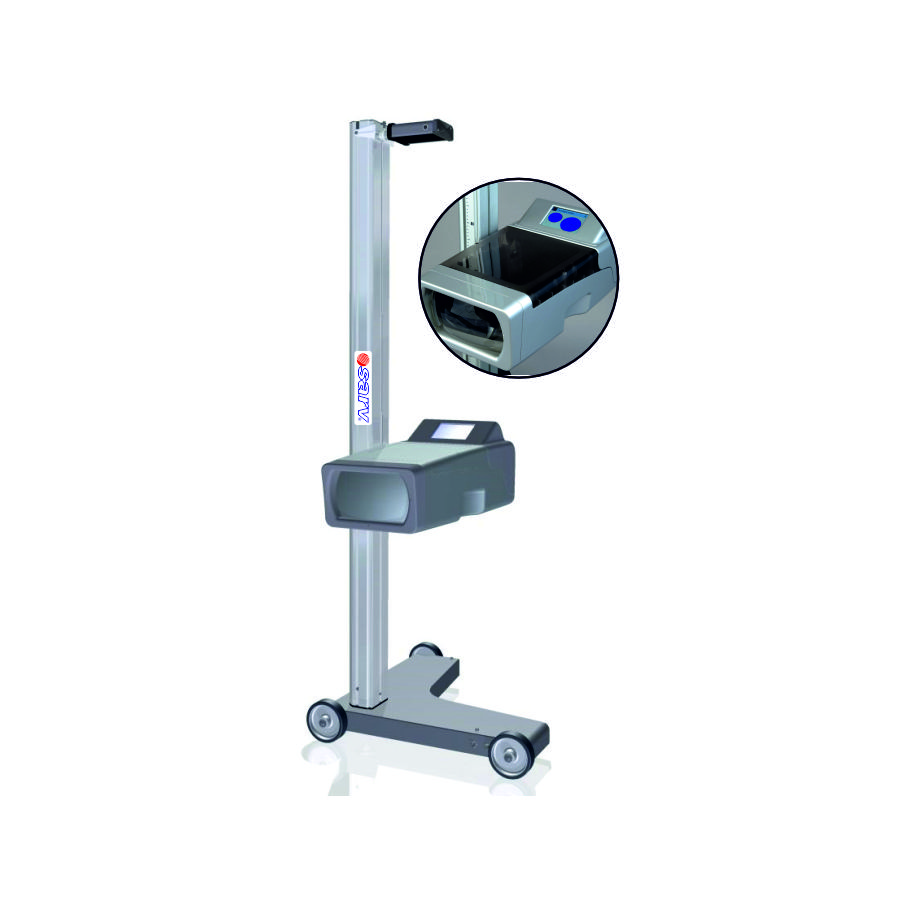

- The Headlight Aligner is an advanced diagnostic tool designed to accurately measure and adjust vehicle headlamp beams for optimal road visibility and safety.
- Equipped with a high-resolution CMOS camera, it captures detailed beam patterns and ensures precise alignment of headlights.
- The integrated TFT touchscreen display provides real-time visualization and easy control, allowing technicians to perform adjustments quickly and efficiently.
- Designed to meet modern automotive standards, it ensures compliance with road safety regulations by maintaining correct beam angles and intensity.
- The system measures vertical and horizontal beam deviation, helping eliminate glare and improve driving safety.
- Built with a sturdy column and base, it offers excellent stability during operation and precise positioning.
- The aligner features adjustable height settings, making it suitable for different vehicle types including passenger cars and light commercial vehicles.
- Advanced optical components and laser visor support accurate targeting and measurement.
- Optional features such as printer, Bluetooth module, and Wi-Fi connectivity enhance functionality and data management.
- Designed for ease of use, it is ideal for both experienced technicians and modern automated inspection systems.
Technical Specifications
Display: 5.7” TFT Touchscreen (320×240 resolution)
Camera: CMOS Camera (640×480 VGA, Pixel 6.0 × 6.0 µm)
Ambient Conditions:
Working Temperature: +5°C to +45°C
Humidity: 20% – 80% RH
Storage Temperature: -25°C to +55°C
Storage Humidity: 30% – 90% RH
Dimensions & Weight:
Machine Dimensions (W×D×H): 660 × 695 × 1780 mm
Weight: Approx. 35 kg
Measurement Parameters:
Top & Bottom Alignment: ±600 mm / 10 m (±6%)
Right & Left Alignment: 0–1000 mm / 10 m (0–10%)
Luminosity Range: 0–240 klx (0–150,000 cd)
Height from Ground: 240–1500 mm
Power Supply: 12V (internal battery), 100–240V, 50/60 Hz
Accuracy:
Intensity: ±5% of scale
Vertical Axis Deviation: ±0.1%
Horizontal Axis Deviation: ±0.2%
Applications
Automotive service workshops
Vehicle inspection and testing centers
Car dealerships and service stations
Government vehicle inspection facilities
Fleet maintenance and repair centers
Key Features
Camera-Based Beam Measurement – Uses high-resolution CMOS camera for precise headlight alignment.
Integrated Touchscreen Display – Provides real-time visualization and easy control of alignment data.
Accurate Beam Deviation Detection – Measures both vertical and horizontal alignment for optimal headlamp positioning.
Wide Height Adjustment Range – Suitable for different vehicle sizes and headlamp heights.
Laser Visor Assistance – Enhances targeting accuracy during alignment procedures.
Stable Column Design – Ensures consistent and vibration-free measurement performance.
Compact & Mobile Structure – Easy to move and position within workshop environments.
Optional Connectivity Features – Supports Bluetooth, Wi-Fi, and printer integration for data handling.
Automatic Floor Compensation – Adjusts for uneven surfaces to maintain measurement accuracy.
User-Friendly Operation – Designed for quick learning and efficient workflow.
