4 Post Lift ST-SSWA35 3.5 Ton In-Ground Alignment Lift for Cars

• ST-SSWA35 is a high-performance 4 post lift designed for workshops that require both lifting and alignment capabilities with a premium in-ground setup.
• Its in-ground installation design enhances the workspace by providing a clean and professional look, making it ideal for showrooms and high-end service centers.
• With a 3500 kg lifting capacity, the lift supports a wide range of passenger vehicles.
• The system includes adjustable turntables and long rear sliding plates, enabling accurate wheel alignment and chassis inspection.
• Built with an electrical hydraulic drive system, it ensures smooth and synchronized lifting of platforms.
• The lift features 24V control system with limit switches, improving safety and operational control.
• Designed with electrical synchronization of platforms, ensuring stable and balanced lifting performance.
• Tested for 115% dynamic loading and 150% static loading, confirming reliability under heavy-duty usage.
• The dual platform structure allows efficient access for underbody inspection and alignment work.
• Ideal for workshops looking to combine aesthetics, performance, and advanced functionality in a single lifting system.

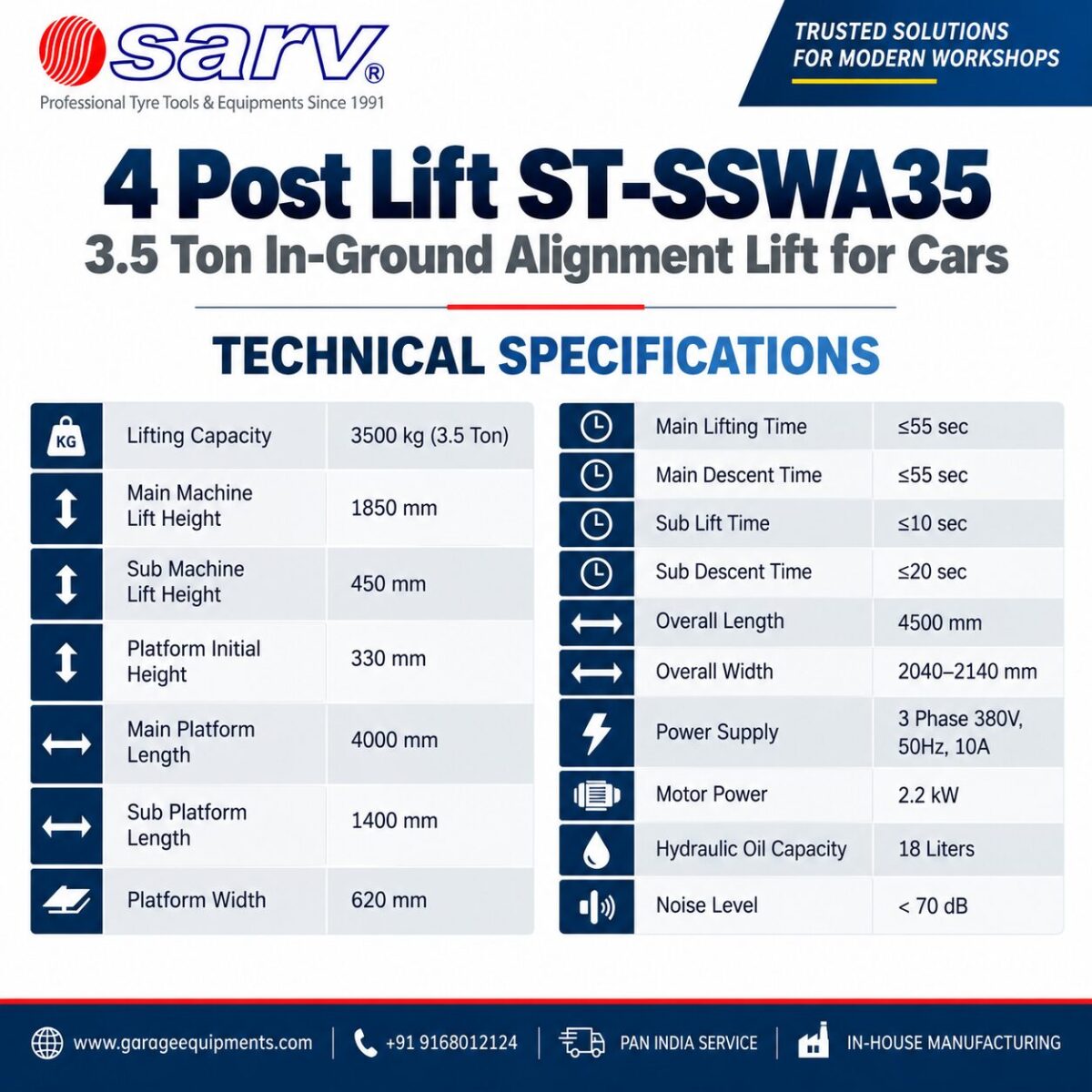

Technical Specifications

Lifting Capacity: 3500 kg (3.5 Ton)
Main Machine Lift Height: 1850 mm
Sub Machine Lift Height: 450 mm
Platform Initial Height: 330 mm
Main Platform Length: 4000 mm
Sub Platform Length: 1400 mm
Platform Width: 620 mm
Main Lifting Time: ≤55 sec
Main Descent Time: ≤55 sec
Sub Lift Time: ≤10 sec
Sub Descent Time: ≤20 sec
Overall Length: 4500 mm
Overall Width: 2040–2140 mm
Power Supply: 3 Phase 380V, 50Hz, 10A
Motor Power: 2.2 kW
Hydraulic Oil Capacity: 18 Liters
Noise Level: < 70 dB

Applications

Wheel alignment centers
Car service workshops
Automotive showrooms with service bays
Chassis inspection stations
Multi-brand automotive garages
Premium vehicle maintenance facilities

Key Features

In-Ground Design – Clean, professional workshop appearance.
3.5-Ton Capacity – Handles a wide range of passenger vehicles.
Alignment-Ready Platform – Turntables and sliding plates for precision work.
Electrical Hydraulic Drive – Smooth and synchronized lifting.
Platform Synchronization – Balanced and reliable operation.
Advanced Safety Controls – 24V system with limit switches.
Dual Platform Function – Improved access for maintenance.
High Load Tested – 115% dynamic, 150% static capacity.
Low Noise Operation – Runs below 70 dB.
